73 Pipe & Tube Fittings

　Brass Falred Nuts

　黄铜螺帽

For Millimeter Size Tube O.D.			For Inch Size Tube O.D.
733661	6	7/16x20s	733671	1/4	7/16x20s
733662	6	1/2x20s	733672	1/4	1/2x20s
733663	8	1/2x20s	733673	3/8	5/8x18s
733664	8	5/8x18s	733674	3/8	3/4x16s
733665	10	5/8x18s	733675	1/2	3/4x16s
733665	10	5/8x18s	733676	5/8	7/8x14s
733666	12	3/4x16s
733667	12	3/4x16s

　

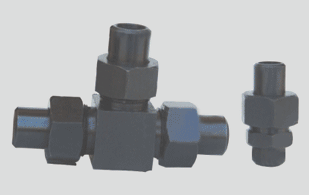

　Ermeto High Pressure Steel Couplings 高压管接头

　

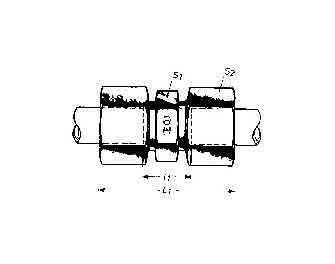

　Steel Unions

CODE	TUBE O.D.	LENGTH
NOMINAL PRESSURE:100 KGF/CM2
734451	4 MM	31 MM
734452	6	32
734453	8	35
734454	10	35
734455	12	35
NOMINAL PRESSURE:315 KGF/CM2
734456	6 MM	39 MM
734457	8	40
734458	10	42
734459	12	43
734460	15	46
734461	18	48

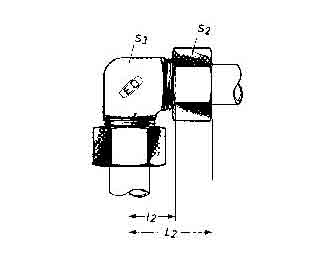

　Steel Elbows 弯型接头

CODE	TUBE O.D.	LENGTH
NOMINAL PRESSURE:100 KGF/CM2
734465	4 MM	21 MM
734466	6	21
734467	8	23
734468	10	24
734469	12	25
NOMINAL PRESSURE:315 KGF/CM2
734471	6 MM	27 MM
734472	8	29
734473	10	30
734474	12	32
734475	15	36
73476	18	40

　

　

　

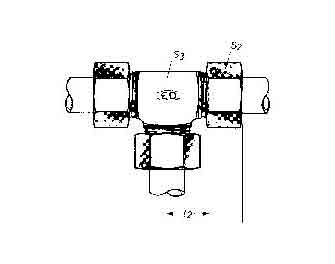

　Steel tees T 型接头

CODE	TUBE O.D.	LENGTH
NOMINAL PRESSURE:100 KGF/CM2
734481	4 MM	21 MM
734482	6	21
734483	8	23
734484	10	24
734485	12	25
NOMINAL PRESSURE:315 KGF/CM2
734486	6 MM	27 MM
734487	8	29
734488	10	30
734489	12	32
734490	15	36
734491	18	40

　Brass Flareless Union Tees　黄铜套入T 型接头

Code	Tube O.D. mm	Nut Thread PF	Code	Tube O.D. mm	Nut Thread PF
734061	4	1/8	734065	12	1/2
734062	6	1/4	734066	15	5/8
734063	8	1/4	734067	20	3/4
734064	10	3/8	734068	25	1

　Brass Flareless Union Elbows 黄铜套入90度弯头接管器

Code	Tube O.D. mm	Nut Thread PF	Code	Tube O.D. mm	Nut Thread PF
734071	4	1/8	734075	12	1/2
734072	6	1/4	734076	15	5/8
734073	8	1/4	734077	20	3/4
734074	10	3/8	734078	25	1

　黄铜套入公牙接头 Brass Flareless Male Elbows

Code	Tube O.D. mm	Nut Thread PT	Code	Tube O.D. mm	Nut Thread PT
734081	4	1/8	734089	12	3/8
734082	6	1/8	734090	15	3/8
734083	6	1/4	734091	15	1/2
734084	8	1/8	734092	20	1/2
734085	8	1/4	734093	20	3/4
734086	10	1/4	734094	25	3/4
734087	10	3/8	734095	25	1
734088	12	1/4

　黄铜套入母牙接头 Brass Flareless Female Couplings

　

　

　

　

　

Code	Tube O.D. mm	Nut Thread PT	Code	Tube O.D. mm	Nut Thread PT
734031	4	1/4	734038	8	1/2
734032	4	3/8	734039	10	1/4
734033	6	1/4	734040	10	3/8
734034	6	3/8	734041	10	1/2
734035	6	1/2	734042	12	1/4
734036	8	1/4	734043	12	3/8
734037	8	3/8	734044	12	1/2

　Brass Flareless Male Connectors

　黄铜套入公牙接头

Code	Tube O.D. mm	Nut Thread PT	Code	Tube O.D. mm	Nut Thread PT
734001	4	1/8	734009	12	3/8
734002	6	1/8	734010	15	3/8
734003	6	1/4	734011	15	1/2
734004	8	1/8	734012	20	1/2
734005	8	1/4	734013	20	3/4
734006	10	1/4	734014	25	3/4
734007	10	3/8	734015	25	1
734008	12	1/4

　Brass Flareless Unions 黄铜套入接头器

　

Code	Tube O.D. mm	Nut Thread PT	Code	Tube O.D. mm	Nut Thread PT
734021	4	1/8	734009	12	1/2
734022	6	1/4	734010	15	5/8
734023	6	1/4	734011	20	3/4
734024	8	3/8	734012	25	1

　Brass Flareless Bulkhead Unions 黄铜套入隔板接管器

Bulkhead Male Connector Tube

Code	Tube O.D. mm	Nut Thread PF	Code	Tube O.D. mm	Nut Thread PF
734051	4	1/8	734055	12	1/2
734052	6	1/4	734056	15	5/8
734053	8	1/4	734057	20	3/4
734054	10	3/8	734058	25	1

　Brass Flared Union Couplings

　黄铜接管接头

　

　

　

For Millimeter Size Tube O.D.		For Inch Size Tube O.D.
Code	Tube O.D. D mm	Code	Tube O.D. D mm
733701	6x6	733706	1/4x1/4
733702	8x8	733707	3/8x3/8
733703	10x10	733708	1/2x1/2
733704	12x12	733709	5/8x5/8

　

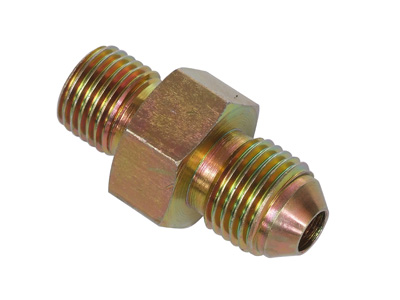

　Brass Flared Half Unions 黄铜接管器

For MIllimeter Size Tube O.D.			For Inch Size Tube O.D.
Code	Tube O.D. D mm	Thread End d2 PF	Code	Tube O.D. D mm	Thread End d2 PF
733601	6	1/8	733616	1/4	1/8
733602	6	1/4	733617	1/4	1/4
733603	6	3/8	733618	1/4	3/8
733604	8	1/8	733619	3/8	1/4
733605	8	1/4	733620	3/8	3/8
733606	8	3/8	733621	3/8	1/2
733607	10	1/4	733622	1/2	3/8
733608	10	3/8	733623	1/2	1/2
733609	10	1/2	733624	5/8	1/2
733610	12	3/8
733611	12	1/2

　

For MIllimeter Size Tube O.D.			For Inch Size Tube O.D.
Code	Tube O.D. D mm	Thread End d2 PF	Code	Tube O.D. D mm	Thread End d2 PF
733631	6	1/8	733646	1/4	1/8
733632	6	1/4	733647	1/4	1/4
733633	6	3/8	733648	1/4	3/8
733634	8	1/8	733649	3/8	1/4
733635	8	1/4	733650	3/8	3/8
733636	8	3/8	733651	3/8	1/2
733637	10	1/4	733652	1/2	3/8
733638	10	3/8	733653	1/2	1/2
733639	10	1/2	733654	5/8	1/2
733640	12	3/8
733641	12	1/2

　

　

　Brass Flared Soldering Unions 黄铜接管器

　

For Millimeter Size Tube O.D.			For Inch Size tube O.D.
Code	Tube O.D. D mm	Soldering End O.D. D mm	Code	Tube O.D. D mm	Soldering End O.D. D mm
733681	6	8	733686	1/4	8
733682	10	13	733687	3/8	13

　Brass Flared Reducing Union Couplings 黄铜异径接管接头

Code	Tube O.D. D mm	Tube O.D. D Inch	Code	Tube O.D. D Inch	Tube O.D. D Inch
733711	6	3/8	733715	1/4	3/8
733712	6	10mm	733716	1/4	10 mm
733713	6	12mm	733717	1/4	12 mm
733714	6	1/2	733718	1/4	1/2

　Brass Flared Female Soldering Unions 黄铜管端接管

Code	Tube O.D. D mm	Tube I D Soldering D Inch	Code	Tube O.D. D Inch	Tube I.D. Soldering D Inch
733721	10	3/8	733726	3/8	3/8
733722	10	1/2	733727	3/8	1/2
733723	12	1/2	733728	1/2	1/2
733724	12	5/8	733729	1/2	5/8
733725	12	3/4	733730	1/2	3/4
			733731	5/8	5/8
			733732	5/8	3/4

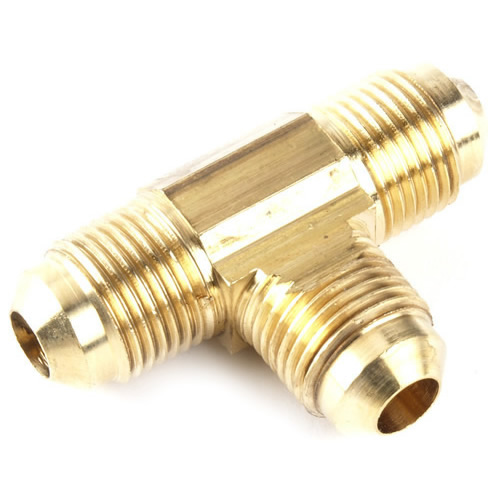

　Brass Flared Tees 黄铜T型接头

brass flare tee, 1/2in.

For Millimeter Size Tube O.D.		For Inch Size Tube O.D.
Code	Tube O.D. D mm	Code	Tube O.D.D Inch
733771	6	733776	1/4
733772	8	733777	3/8
733773	10	733778	1/2
733774	12	733779	5/8

　

　Brass Flared Tees with Male Thread End

For Millimeter Size Tube O.D.
Code	Tube O.D. D mm	Male Thread PT	Code	Tube O.D. D Inch	Male Thread PT
733781	6	1/8	733791	1/4	1/8
733782	6	1/4	733792	1/4	1/4
733783	8	1/4	733793	3/8	1/4
733784	10	1/4	733794	3/8	3/8
733785	10	3/8	733795	1/2	3/8
733786	12	3/8	733796	1/2	1/2
733787	12	1/2
