6x24 Round

6×24 Round Strand Wire Rope （galvanized smooth surface）

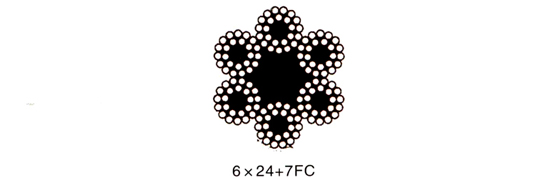

Wire Rope Structure（Construction）:6×24＋7FC

Nominal Diameter		Approox.Weight		Nominal Tensile Strength of Rope（MPa）
Nominal Diameter		Approox.Weight		1470	1570	1670	1770	1870
d	Allowed Tolerance	NF natural fibre core wire rope	SF synthetic fibre core wire rope	Minimum Breaking Load of Rope
mm	%	kg/100m		KN
8	7	20.4	19.5	26.3	28.1	29.9	31.7	33.5
9		25.8	24.6	33.3	35.16	37.9	40.1	42.4
10	0	31.8	30.04	41.2	44	46.8	49.6	52.5
11		38.5	36.8	49.8	53.2	56.6	60	63.4
12		45.8	43.8	59.3	63.3	67.3	71.4	75.4
13		53.7	51.4	69.6	74.3	79	83.8	88.5
14		62.3	59.6	80.7	86.2	91	97.1	103
16		81.4	77.8	105	113	120	127	134
18		103	98.5	133	142	152	161	170
20		127	122	165	176	187	198	209
22		154	147	199	213	226	240	253
24		183	175	237	253	269	285	302
26		215	206	278	297	316	335	354
28		249	238	323	345	367	389	411
30		286	274	370	396	421	446	471
32		326	311	421	450	479	507	536
34		368	351	476	508	541	573	605
36		412	394	533	570	606	642	679
38		459	439	594	635	675	716	756
40		509	486	659	703	748	793	838
42		561	536	726	775	825	874	924
44		616	589	797	851	905	959	1010
46		673	643	871	930	989	1050	1110
48		733	700	948	1010	1080	1140	1210
50		795	760	1030	1100	1170	1240	1310
52		860	822	1110	1190	1260	1340	1420
54		927	886	1200	1280	1360	1450	1530
56		997	953	1290	1380	1470	1550	1640
58		1070	1020	1380	1480	1570	1670	1760
60		1140	1090	1480	1580	1680	1780	1880
62		1220	1170	1580	1690	1800	1910	2010
64		1300	1250	1690	1800	1920	2030	2140
66		1390	1320	1790	1910	2040	2160	2280
68		1470	1410	1900	2030	2160	2290	2420
70		1560	1490	2020	2150	2290	2430	2570
72		1650	1580	2130	2280	2420	2570	2710
74		1740	1660	2250	2410	2560	2710	2870
76		1840	1760	2380	2540	2700	2860	3020
78		1930	1850	2500	2670	2840	3020	3190
80		2040	1950	2630	2810	2990	3170	3350
Main Applications：Towboat goots net,floating transportation of wood,bunding etc.
